SULKO VENT System

Main Features

  • ventilation of residential spaces with heat recovery
  • universal for windows and doors without additional heat recovery equipment of air exchange
  • centralized control and minimal space requirements
  • 3 times more efficient than standard solutions
  • very quiet and environmentally friendly
Meets conditions subsidies on Green Savings
Make an enquiry

Basic technical parameters:
Number of chambers: 6
Building depth: 86 mm With addition of central seals: yes

This system is suitable for:

Apartment buildings
Prefabricated houses
Family homes
Commercial buildings
Historic buildings


Product Description
Technical details:
Enquire about the product

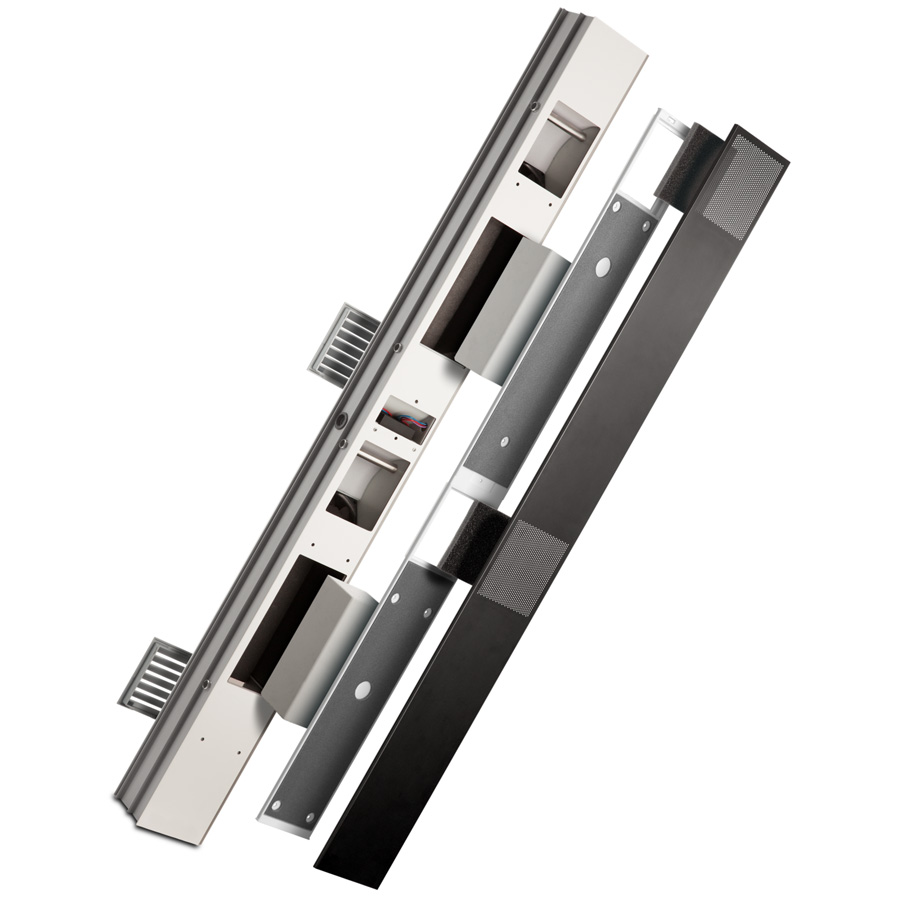

Product Description SULKO Vent

The device operates on the principle of regenerative heat exchange, has three power levels that operate in 70-second cycles. A compact heat accumulator made of ceramic composite material is placed within a stream of air generated by a fan with an electric motor. With constantly the constantly changing air stream that is generated by intentionally modifying the direction of rotation of the fan, the ceramic is charged by the heat from the air in the room which is then fed back into the outdoor air.

This takes place so effectively, that the ventilation loss is only 10-15% of the energy needed for heating. The recycling facility provides not only heat recovery but also replaces humidity in winter when the air is dry. This process captures moisture from the air that is generated by people, pets or plant, mixes it with the incoming cool air form the exterior and releases it back into the interior. This result is a perfectly balanced – not too humid, not too dry – living environment.

Technical details:

  • Recovery efficiency: 96,8 % o 85,8 %
  • Air flow rate: 3,5 / 5 /15 m3/h
  • Voltage: 12 V SELV
  • Supply voltage: 230 VAC 50 Hz
  • Specific power: 0,48 W/m3/h
  • Power consumption: 2,2 / 2,8/ 3,8 W
  • Standby Power Consumption: 1,5 W
  • Regeneration humidity: 20–30 %
  • Noise (1 m): 26 / 33 / 36 dB(A)
  • Normative difference Sound levels: 32 dB
  • Dimensions of recycling units - a cross-section: 100 × 86 mm
  • Length: supplied 1500 / 2500 mm 1012 mm

Enquire about the product
